| Analog/Digital Insulation and Continuity Tester, 50V, 100V, 250V and 500V |
SPECIFICATIONS
|
Measuring Range |
MG218703: 0-100 MΩ (Analog), 0.01 KΩ-100 GΩ (Digital) |
| MG218702, MG218701, BD121005: 0-10 GΩ (Analog), 0.01-999MΩ (Digital) |
| Terminal Voltage on Open Circuit (d.c.) |
+15% maximum |
| Short Circuit Current |
1.5 mA, ±0.5 mA |
| Test Current on Load |
1 mA at min. pass values of insulation specified in BS 7671, HD 384 and IEC 364 |
| Continuity Ranges |
| Measuring Range |
0.01-99.9 Ω |
| Open Circuit Voltage |
5V, ±1 V |
| Short Circuit Current |
205 mA, ±5 mA |
| Accuracy (at 20°C) |
1 - 9.99 Ω ±2%, ±2 digits |
10 - 99.9 Ω ±5% |
| Zero Offset Adjust |
0- 9.99 Ω |
| Continuity Buzzer |
Operates at less than 5 Ω |
| Resistance Range (can be used for diode testing) |
| Measuring Range |
0.1 - 100 kΩ (0 - 10 MΩ on analogue scale) |
| Open Circuit Voltage |
5 V, ±1 V |
| Short Circuit Current |
10μA, ±5μA |
| Accuracy (at 20°C) |
±5%, ±2 digits |
| Measuring Range |
0 - 600 Vdc, 0 - 600 Vac (50/60 Hz), 0 - 450 Vac (400 Hz) |
| Warranty |
3 Years |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| MG218703 |
|
BM81/2 |
|
Analog/Digital Insulation and Continuity Tester, 50V, 100V, 250V and 500V |
|
Yes |
|
2,149,200 |
| MG218702 |
|
BM403/2 |
|
ANALOG/DIGITAL INSULATION AND CONTINUITY TESTER 250V/ 500V/1000V BM403 C/RB BM403/2 |
|
Yes |
|
1,401,840
|
| MG218701 |
|

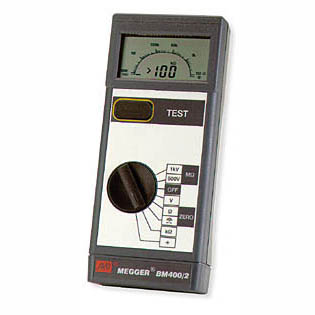

BM400-2 |
|
ANALOG/DIGITAL INSULATION AND CONTINUITY TESTER 500V |
|
Yes |
|
1,380,240 |
| BD121005 |
|
BM401/2 |
|
ANALOG/DIGITAL INSULATON AND CONTINUITY TESTER 500 V |
|
Yes |
|
1,350,000
|
| |
|
|
 | |
 |
|
 |
|
