LAMPLINE UV INTENSITY MONITOR

The state-of-the-art LampLine UV Intensity Monitors are electro-optic instruments designed for continuous on-line UV lamp monitoring. With continuous monitoring, a UV lamp's relative UV output is used to verify ongoing lamp performance. In each system, the LampLine UV Sensors (sold separately) are mounted permanently looking at the UV source.

With any LampLine monitoring system, the principle is the same. After installation, the user calibrates their system(s). When thelamp(s) are new and the irradiator(s) are clean, each monitor is set to 100%. The user then determines a Lower Limit percentage for the alarms and sets those. As a lamp degrades over time, the signal from the sensor is translated into a percentage of your original intensity setting as calibrated.

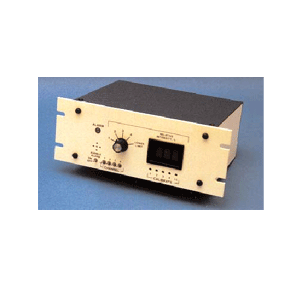

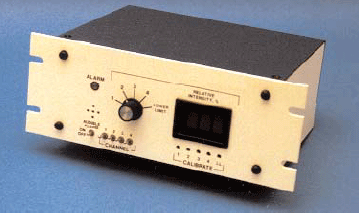

LampLine Multi-Channel Monitor:
This top of the line UV lamp monitoring system can monitor up to 4 lamps at a time on-line. However, it is cascadable, meaning more than 4 lamps may be monitored by adding additional Monitors, each interconnected so that any lamp dropping below threshold will set off an alarm. The front display shows the percentage of original output for any lamp being monitored.

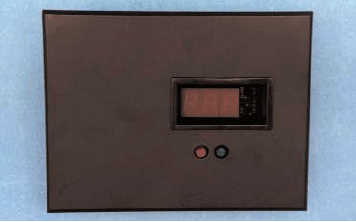

LampLine Panel Mount:
This online monitoring system can be retrofitted to existing machinery or incorporated directly into equipment design. Each small monitor can be frontpanel mounted so that the percentage of original output displayed on its LED can be constantly viewed and assessed by the user.

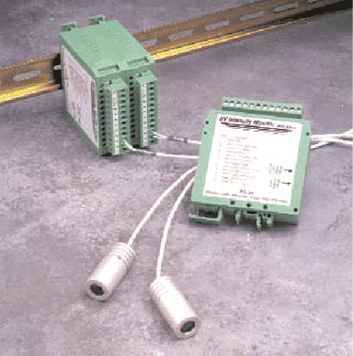

LampLine DIN Module:
The intent of this on-line system is to be able to monitor a multitude of lamps by snapping individual modules onto a rail which is normally mounted in the rear or side of the equipment. This system is available for use in integrated
monitoring and control systems containing analog signal processing and shared display capability. DIN Modules do NOT have a display. Each rail mounted module allows for monitoring of a single UV lamp.

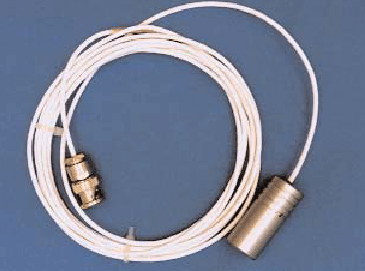

LampLine Sensors:
The sensors work with mercury vapor, electrodeless, deuterium, or any lamps which produce UV light. Sensors are ordered individually and are available in 250-260nm, 280-320nm, 320-390nm, or 395-445nm spectral responses.
“Lamp On” detector indicates UV system is powered and lamp is running. Each sensor comes with a 10' cable (custom lengths are available).

Part Number	Description	Units
M007-067A	LAMPLINE MULTI-CHANNEL MONITOR	EACH
M007-066A	LAMPLINE PANEL MOUNT	EACH
M007-068A	LAMPLINE DIN MODULE	EACH
M007-085	LAMPLINE SENSOR COMPACT	EACH
M007-086	LAMPLINE SENSOR “LAMP ON”	EACH
