The Handheld MultiScope™ is a graphical storage oscilloscope

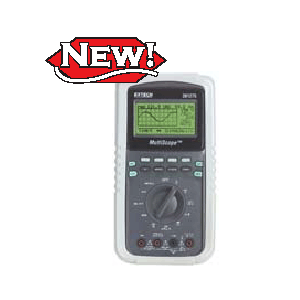

HANDHELD MULTISCOPE™

The Handheld MultiScope™ is a graphical storage oscilloscope and true RMS DMM that that includes an RS-232 interface and PC software. It features oscilloscope graphical functions: single channel, volts/division (150mV-400V), amps/division (15A), 500ns glitch capture, and pre/post-trigger (- 4div/+10div). The oscilloscope bandwidth is DC to 100kHz with a sample rate of 1,000,000 samples/second. The multimeter functions include AC/DC voltage/current, resistance, capacitance, frequency, dB, duty cycle, pulse width, period, TTL level generator, and diode and continuity tests.

FEATURES/SPECIFICATIONS:
● Oscilloscope Display: 128 x 64 pixel graphic LCD (View area: 2.8" x 1.5")
● MultiMeter Display: 3-3/4 digit (4000 count) LCD with bargraph and data hold
● Record and recall minimum/maximum/average readings with time stamping
● Generator output provides 10Hz to 20kHz TTL level output
● Store and recall 15 waveforms plus setup
● Graphical "help" screens explain functions
● Over-range indication and auto power off
● Optional inductive pick-up adaptor for automotive rpm measurements to 12,000 rpm (distributor type engines)
● Optional rechargeable NiCad battery pack and AC adaptor/recharger recommended
● Complete with protective holster, built-in stand, RS-232 cable, 6 "AA" batteries, fuses, test leads and alligator clips

Part Number	Description	Units
M015-014	HANDHELD MULTISCOPE™	EACH
M015-015	HANDHELD MULTISCOPE™ WITH NIST	EACH
M015-019	TEMPERATURE ADAPTOR	EACH
M015-018	AUTOMOTIVE PICK-UP	EACH
M015-016	NICAD 117 CHARGER	EACH
M015-017	NICAD 220 CHARGER	EACH
