| The Linear Abraser 5700 is the first wear and scratch tester to measure the abrasion resistance of finished products of any size or shape |
TABER LINEAR ABRASER
5700
CONTOURED
SURFACE TESTING
|
The Linear Abraser 5700 is the first
wear and scratch tester to measure the abrasion resistance of finished products
of any size or shape - flat, concave, or convex.
| |
The new Linear Abraser uses a free-floating
head to follow the contours of every sample, permitting testing of
finished products. With virtually no limit on sample size or shape,
the Linear Abraser is ideal for testing plastics, automotive components,
painted parts, printed graphics, optical products, rubber, leather,
textiles, and for use in testing laboratories. |
Maintain consistent testing standards with Taber's world-famous abrasives.
| |
The Linear Abraser abrades with a Wearaser™.
The size and shape of a pencil eraser, the Wearaser uses the high-quality
Taber abrasive media found in their world-famous wheels so you're
assured of consistent test results. |
Versatile wear and scratch testing with a single
rugged, durable machine.
| |
With adjustable stroke length, speed,
load, and a wide selection of Taber Wearasers, the Linear Abraser
allows you to customize test parameters to your exact needs. An optional
sample table provides additional flexibility for small or odd-shaped
samples. Plus, optional attachments convert the Linear Abraser to
a Scratch Tester or a Crockmeter. |
|

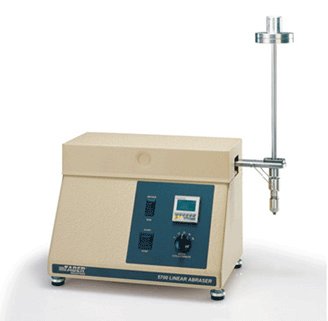

Taber Linear Abraser Model 5700 |

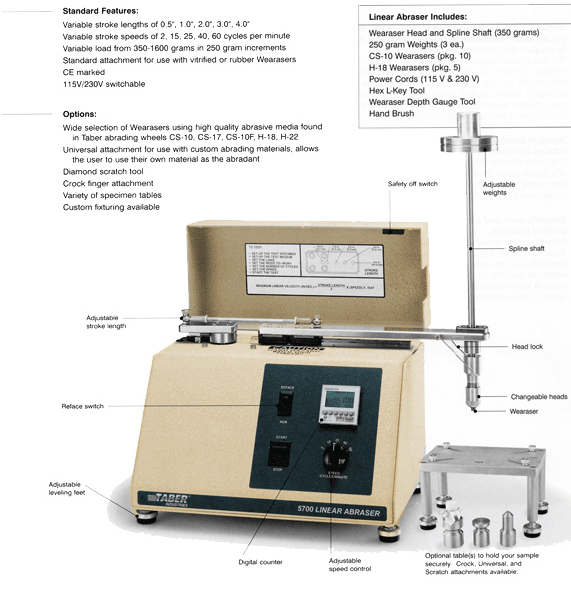

FEATURES
SPECIFICATIONS
Conforms to the following Specifications:
| ■ |
ASTM D-6279 |
| ■ |
ASTM F1319 |
| ■ |
ISO 105-X12 |
GENERAL
The Linear Abraser incorporates
a "free-floating head" that strokes in a linear motion and can
test virtually any size or shape specimen. Adjustable settings enable the
user to select stroke length, speed, and load. Plus, interchangeable attachments
can be used to convert the instrument from a Wear Tester to a Scratch Tester;
Crock Meter; or custom configuration. When used as a wear tester, a ¼"
wide wear path is generated from 0.5" to 4" in length.
RUN and REFACE MODES
For testing convenience, a separate REFACE
mode is included to allow the user to reface the Wearaser™ abrader. This
eliminates the need to reprogram the number or cycles, and avoids adding
additional strokes to the counter during a test. The REFACE mode is displayed
on the counter as 'SET 2.' During normal testing, the Linear Abraser should
be set to RUN mode (displayed as SET 1). Both modes are user adjustable
from 0 to 999,999 cycle counts.
ACCESSORIES & ABRADANTS
 |
Universal Kit
Perform "real-world" testing by attaching our own abradant,
or one of yours. The Universal Kit is ideal for testing flat on flat
surfaces. |
|
Diamond Scratch Tool
The Diamond Scratch Tool's cutting edge is the converging point from
three sides and edges of a perfect cube. |
|
Crock Meter Kit
The Crock Meter Kit is typically used to evaluate color fastness (transfer)
on textile products. The kit includes a 0.625" acrylic finger,
clamp ring and package of crocking cloths
|
|
Flat Specimen Table
Rigid, flat specimens are mounted to this table using four (4) adjustable
mounting nuts. A leveling bubble and adjustable feet height can be
used to ensure your table surface is parallel to the work area. |
|
Vacuum Vise
This versatile specimen table has adjustable jaws that open 2½"
to accommodate contoured specimens or custom fixtures. An integral
vacuum base locks the vise to your worktable.
|
|
45° Adjustable Vacuum Vise
Adjustable clamp jaws open approximately to a maximum of 6",
and can be pivoted 45°. An integral vacuum base locks the vise to
your worktable. |
|
Auxiliary Weight
The standard minimum load for the Linear Abraser is 350g. Using the
250g weight discs that are included (3 each), the load can be increased
to 1,100g. Additional 250g weight discs can be purchased to increase
the load to a maximum of 1,600g.
|
| AVAILABLE ITEMS and ACCESSORIES |
| |
| Item Number |
Item Description |
| AB-5301 |
Linear Abraser 5700 for Contoured Surface Testing
(Both 115v/50 Amp and 220v/60Amp power cords and fuses provided). |
| Accessories |
| AB-5311 |
CS-10 Wearaser Abrasive Media - Resilient, mild (pkg./10) |
| AB-5313 |
CS-17 Wearaser Abrasive Media - Resilient, harsh
(pkg./10) |
| AB-5315 |
CS-10F Wearaser Abrasive Media - Resilient, very
mild (pkg./10) |
| AB-5321 |
H-18 Wearaser Abrasive Media - Vitrified, medium
(pkg./5) |
| AB-5322 |
H-22 Wearaser Abrasive Media - Vitrified, coarse
(pkg./5) |
| AB-5332 |
Universal attachment for use with custom abrading
materials. (Allows user to use their own material as the abradant.) |
| AB-139-58 |
Diamond Scratch Tool |
| AB-139-55 |
Conical Diamond Tool w/90°, 3 mil (.003") radius
point |
| AB-139-56 |
Conical Diamond Tool w/90°, 3.5 mil (.0035")
radius point |
| AB-5351 |
Crock finger replacement |
| AB-5352 |
Crocking Cloths (pkg./1000) |
| AB-5353 |
Crock Meter Kit (includes finger, clamp ring &
cloths) |
| AB-5356 |
Refacing Strips (pkg./50) |
| AB-5358 |
Sample Table, Flat |
| AB-5359 |
Sample Table, Vacuum Vice |
| AB-5360 |
Sample Table, 45° Adjustable Vacuum Vice |
| AB-5365 |
Auxiliary Weight (250 gram) |
| |
|
| |
|
|
 | |
 |
|
 |
|
