| Four New Products from the Micro-Gloss Family: The 20°, 60°, 85°, and Tri-Gloss! |
New! The Micro - Gloss
II
Family of Products
Four New Products from the Micro-Gloss Family:
The 20°, 60°, 85°, and Tri-Gloss! |
New Features!
■ Automatic Calibration Check
■ Long term calibration
■ 10 year warranty on lamp life
■ Menu guided with new ScrollWheel
■ Small and light - 400 grams
■ Statistics
■ Difference and Pass/Fail
■ Memory for 999 Readings
■ Software for direct data transfer to Excelⓒ included
■ Gloss Range 0 - 2000
■ Display in 6 languages
■ Simultaneous display of 2 or 3 geometries
No feature is missing! |
 |
Optimally tailored to
all your measurement needs:

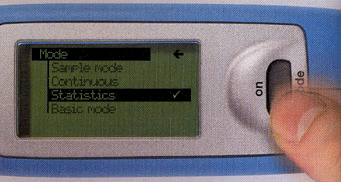

Different tasks ask for different
tools. The easy to turn scroll wheel quickly shows you all needed functions
- even without a PC.
 |
Check uniformity on the sample?
Continuous mode. With Min. and Max. |
|
Compare the difference to the target?
Difference mode. With Pass/Fail |
|
Average several readings per panel?
Statistic Mode. With all statistical data. Number of readings
per sample are selectable. |
Or just check a few samples in between for a colleague? Use the Basic
Mode to interrupt the series and operation is reduced to the simplest
task. |
 |
OVERVIEW OF FUNCTIONS
Continuous |
actual value, average, min., max |
| Difference and Pass / Fail |
memory for 50 standards with pass/fail limits |
| Statistics |
number of readings per sample are selectable from
2 to 99 |
| Display in 3 columns selectable |
actual value, average, std., dev., min., max., range,
difference, pass/fail |
| Memory |
999 readings with date and time, with recall function |
| Interface |
serial RS 232 |
| Software |
easy-link (included) |
| Micro-TRI-gloss |
simultaneously displays 2 or 3 geometries |
| Long-term calibration |
with automatic check of the calibration standard |
| Autorange |
0 - 2000 GU (20°)
0 - 1000 GU (60°)
0 - 160 GU (85°) |
| Measuring Time |
0.5 seconds / geometry |
| Menu guidance switchable in |
English, Spanish, German, French, Italian, Japanese |
| Auto shut-off time |
selectable 10 - 99 seconds |
| Power |
one 1.5V AA Alkaline Battery; 10,000 readings or
external power supply. |
| Operating Temperature |
15 - 40 C (60 - 104 F) |
| Relative Humidity |
up to 85%, non-condensing |
| |
|
STANDARDS
| ASTM |
D 523 |
D 2457 |
| ISO |
2813 |
7668 |
| DIN |
67530 |
|
| JIS |
Z 8741 |
|
|
TECHNICAL SPECIFICATIONS
| Description |
Geometry |
Application |
Measuring Area |
Dimensions |
Weight |
| Micro-Gloss ll 20° |
20° |
high gloss |
10 x 10 mm
(0.4 x 0.4 in) |
|
|
| Micro-Gloss ll 60° |
60° |
semi gloss |
9 x 15 mm
(0.35 x 0.6in) |
2.9"H x 6.1"L x 1.9"W
(73mm x 155mm x 48mm) |
0.9 lbs
0.4 kg) |
| Micro-Gloss ll 85° |
85° |
low gloss |
5 x 38 mm
(0.2 x 1.5 in) |
| Micro-TRI-Gloss ll |
20°, 60°, 85° |
universal |
see single angle |
|
|
micro-TRI-gloss ll |
| All Units: |
| Range |
Repeatability |
Reproducibility |
| 0 - 99.9 GU |
0.2 GU |
0.5 GU |
| 100 - 2000 GU |
0.2% |
0.5% |
Always Accurate Gloss Values
With the new micro-gloss you can measure any material
- paints, plastics or highly reflective metals.
Its new, expanded measurement range of up to 2000 gloss units guarantees
always reliable results - according to international standards,
and is DIN-approved.
|
AVAILABLE ITEMS & ACCESSORIES

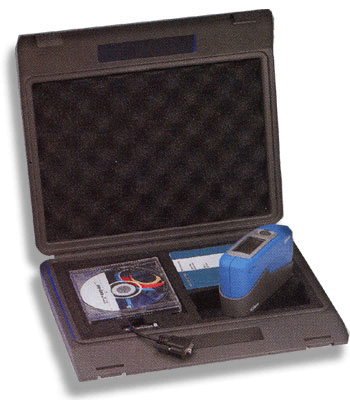

Each Unit comes complete with:
| ■ Instrument |
■ PC-Cable |
| ■ Holder with integrated calibration
tile |
■ Operating manual |
| ■ Certificate of Traceability |
■ Battery |
| ■ Software easy-link |
■ Carrying Case |
| |
| Item Number |
Item |
| GL-4420 |
Micro-Gloss ll 20° for high gloss |
| GL-4460 |
Micro-Gloss ll 60° for semi gloss |
| GL-4485 |
Micro-Gloss ll 85° for low gloss |
| GL-4430 |
Micro-TRI-Gloss ll for universal use |
ACCESSORIES
 |
| CALIBRATION HOLDERS |
| Item Number |
Item |
| GL-4421 |
Calibration holder 20° |
| GL-4461 |
Calibration holder 60° |
| GL-4486 |
Calibration holder 85° |
| GL-4431 |
Calibration holder TRI |
|
 |
| CHECKING STANDARDS |
| Item Number |
Item |
| GL-4422 |
Checking Standard 20° |
| GL-4462 |
Checking Standard 60° |
| GL-4487 |
Checking Standard 85° |
| GL-4432 |
Checking Standard TRI |
|
|
| |
|
|
 | |
 |
|
 |
|
