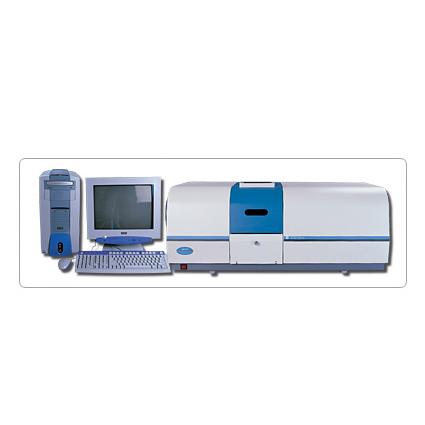

The TAS-986 is our company's highest-grade fully automatic atomic absorption spectrophotometer.

All operations are controlled through the PC, with the AA-Win software based on a WINDOWS platform.

The design of flame burner and graphite furnace in one compact unit enables automatic interchanging of two analytical methods.

There are two background correction methods, self-reversal background correction and deuterium lamp background correction, to ensure the most precise analytical results.

Optical Sysem : Czerny - Turner (C-T) type monochromator
Wavelength range		190nm~900nm
Spectral bandwidth		0.1nm,0.2nm,0.5nm,1.0nm,and 2.0nm.(5steps, with automatic changeover)
Wavelength accuracy		+/-0.3nm(automatic correction)
Wavelength reproducibility		0.2nm
Resolution		over 0.3nm
Baseline Stability		0.005A/30min
Granting		Czerny-turner mount, 1800lines/nm
Focal length		300mm
Scan mode		Automatic
Light source		8 lamps/2 lamps lit
Lamp positioning		Auto position setting, fine scanning function
Background correction		UV background correction Self-reversal background correction
Atomization system		Titanium metal burner head(single slit : 100mm×0.6mm); rot-proof spray spray chamber, high efficiency glass nebulizer;burner height auto-adjustable
Data Processing System	Measurement mode	Absorbance, concentration, transmittance, emission intensity
	Read-out mode	Continuous, peak height, peak area
	Output mode	On-line instrument operating staus display, CRT display& printout of measurement results, calibration curve, signal profile, instrumental parameters and all other kinds of graph etc.
	Data processing functions	Multi-standard calibration method, standard addition method, interpolation method; intergration time(0.1~20seconds), Sampling delay(0~20 seconds), number of deviation( S.D.),relative standard deviation (R.S.D)etc,. correlation coefficient and concentration values
	Data storage	Analytical results, instrumental and measurement parameters, signal profile and calibration curves all can be stored in the computer hard disk
Power requirements		Power supply : 380V AC three-phase four-wire system phase A, Main unit 220V,50Hz, 200W; Phase B,Air compressor 220V,2KW Phase C, graphite furmace power supply 220V,5KW
Instrumental dimensions		110㎝×50㎝×45㎝,weight;75㎏
